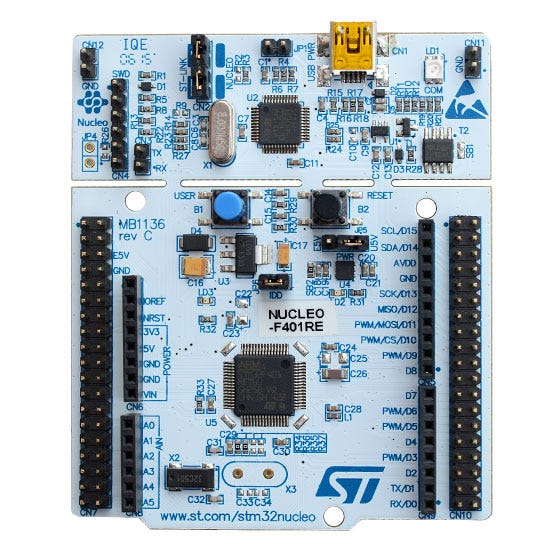

STM32 Nucleo-F401RE

The STM32 Nucleo-F401RE is a low-cost development board from STMicroelectronics
featuring the STM32F401RE ARM Cortex-M4 microcontroller. Ideal for rapid
prototyping of embedded systems, IoT devices, and research instrumentation.

Compatible with Arduino shields and ST Morpho connectors — expand your project
with hundreds of available add-on boards. Fully supported by STM32CubeIDE,
Keil, and IAR development environments.

Key Features:
- STM32F401RET6 microcontroller (ARM Cortex-M4, 84MHz)
- 512KB Flash, 96KB SRAM
- Arduino Uno Rev3 compatible headers
- ST Morpho extension connectors
- Integrated ST-LINK/V2-1 debugger/programmer
- USB Virtual COM port
- 3 LEDs, 2 push buttons
- 3.3V / 5V tolerant I/Os
- Powered via USB or external 7-12V supply

Package Contents:
1x STM32 Nucleo-F401RE board
1x USB-A to Mini-B cable
